Heres a peak at the final product! Read below to find out how a reel of plastic gets turned into the Midnight Coup.
Build starts with collecting reference material. This is the Leviathan weapon concept art by Bungie artist Patrick Bloom
Images of the high rez model (Black&Gold) by Bungie artist Matt Lichy, ingame model is shown in the top left. On top of these references, ingame screenshots of the gun from different angles is used.
Low poly model is used and edits begin to add in function and details like ingame.
I like to print miniature versions at around 50% scale to plan the build out, get an idea of fitting and identify any areas of weakness.
For this particular build the entire weight of the front portion of the handcannon would be supported at two very narrow points. Which would have been hard to glue together and break apart easily.
Similar thing happened a few times on my better devils build which has a even thicker body and so I wanted to add structural integrity for this next build.
Designed in room for two threaded rods, through the base of the gun which would sustain the weight of the front portion.
Cylinder crane rotates around the shorter of two rods. Cylinder rotates on the crane with the help of a ball bearing.
Hammer redesigned for pivot, which is spring powered.
Assembly process for the hammer complex
Marble used is about 12mm. Which is a bit bigger than ingame, but the best I could find in transparent style.
Heres a shot of the cylinder and crane in action!
On with the printing! Printed at about 85% scale to ingame model. Putting it at around 52cm. Its quite a large gun, might even be the biggest handcannon in destiny.
Parts are printed in grey or silver PLA on Creality Cr10s printer.
Painted all the gold parts with a Rustoleum Gold spraypaint, love how it looks. The print is standing up pretty well to in game models of the gun.

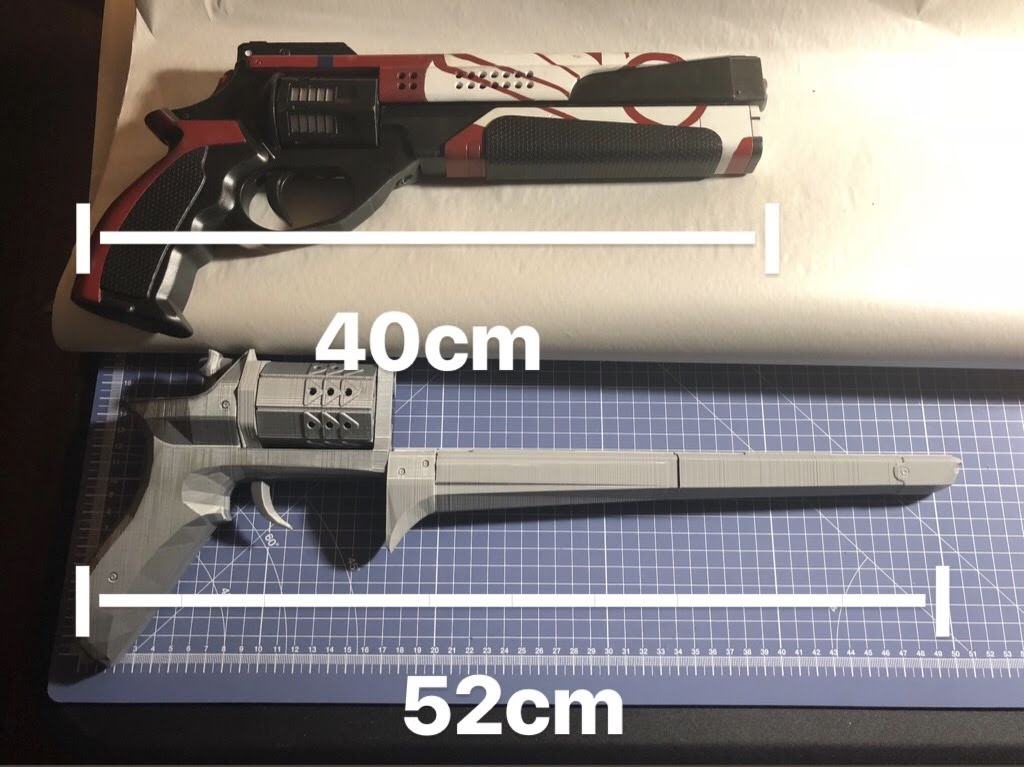

It came out as a very big gun, but i'm very happy with the scale compared to ingame scaling.
The coup is taken apart again for a good sand down and finishing... The most painful part of any build is the sanding.
Curved parts like these printed low poly. Bondo, filler primer and rough sanding is used to get rid of the geometric appearance and add the curves that are needed.
Sanding and filling just the grip took a total of 3-4 days intermittently. The payoff was worth it though!!
Black bottom portion and grip sanded and pained :3. Its finally coming together!
Reload still works after paint, thank god!
White portions sanded and painted. Mmmm creamy. Lots of sand paper harmed during the production of this replica. Next target are the gold pieces.
On the right are the settings I used to print the rest of the gun (0.2 mm layer height.) The one on the left is how I printed the gold parts: 0.04 mm height. Really amazing what FDM can do with some fine tuning! Couldn't have imagined having to sand the right sided version.
ALL GOLD PORTIONS SANDED AND FINISHED HALLALUJA. By far the most tedious part, all of the details are in the gold pieces and the gold spraypaint is so fidgity to work with.
The stand is redesigned in Fusion 360 for a more "Eater of worlds" theme fitting of the Leviathan handcannon.
Cleaned up the inside of the barrel by printing another smaller piece, painting it and attaching to the inside.
For the pattern I used Fusion 360 to design a negative. I had initially planned on printing it in a thin layer on flexible filament to use as a 3D printed stencil. However, there are some very sharp angles and turns that masking tape would just be better fitted for. So I ended up using this model as a guide for cutting out the stencil on masking tape.
Pretty satisfied with the results of the stenciling so far! Key is to use a thin masking paper, thin layer of spray paint and really make sure the edges of the masking tape are stuck on good.
Rip the masking tape off and BAM. Here we are! Shes done!
Youve made it through the post!! Thanks for reading. :D
