Bringing my gameboy back from the dead

i'v had my old gameboy on a shelf for years. I started watching lots of youtube vids on how to mod it so thought i would give it a go go. May the force be with us!

the poor boy was very dirty and battery contacts had some corosion on them so let's get to work!

opened this mofo up and cleaned it on the inside a bit before taking it all apart

threw the contacts in some vinagar and it cleaned them up like a new

i popped them in, fired it up to try them out and it lives again, sorta...

After turning it on i noticed i was gonna need some more elbow grease to get these wheels going! Vertical lines are kinda common and can be fixed with a soldering iron

Taking off the rubber strip to get to the problem area so we can apply some heat under the screen and bring those dead lines back to doing their job

This was the longest process of the whole shabang and it took about 25 minutes to get things looking like this boy will see the light of day again

The screen its back and kicking like bruce lee!

Chucked in a game to be sure all went as planned and it's looking damn fine but we can do better!

Behind the lcd screen is the green polarizer/reflector glued on to it and this is another adventure in it's self to take off. Since it's in a tight space too much movement when peeling it off can damage the ribbon cables so just like a midget at a urinal, i was gonna have to stay on my toes

after a couple of swear words and sweating bullets later, we got the sticker off and no damage done

Time to give the inside of the glass a quick cleaning with some rubbing alcohol to make some no pieces of glue are left behind to get in the way

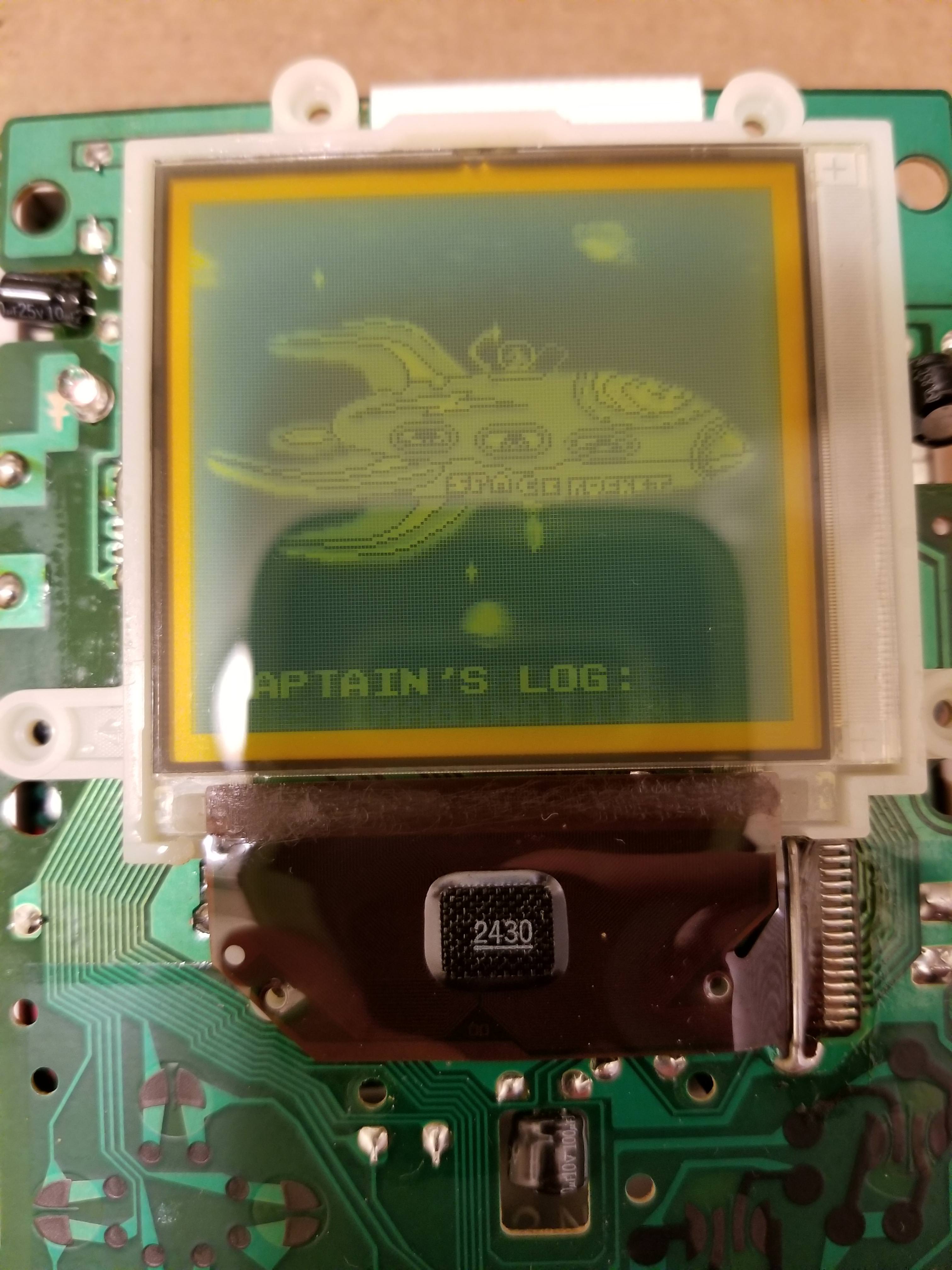

Time to add the meat and potoatoes of this whole stew, the backlight along with the polarization film that comes with it

just gotta drop it in and do some more soldering to light this fire up!

i added a bivert chip as well to help increase the contrast and make the whole thing pop! I got all caught up into installing the chip that i forgot to take pictures, my bad guys

Now with a little bit more of soldering the blacklight screen wire into place along with the chip, we ready to see if this kitten has claws! ENGAGE!!

SUCCESS!! hello again my old friend, you have been missed. I added a new glass screen cover along with cleaning the shell inside & out so to get maximum coolness out of it....and there it is.

Looking dapper AF now!

Time to find a couple of games from my childhood and live the dream with some style!

I had a dang damn fun good time doing this mod and this won't be the only one i build. thanks for watching and see you crazy kids next time!
